Qualification of Ductile Cast Iron
คุณสมบัติเหล็กหล่อเหนียว
![](http://www.knack.co.th/wp-content/uploads/2016/05/qualification_of_ductile1-5.jpg)
![](http://www.knack.co.th/wp-content/uploads/2016/05/qualification_of_ductile1-4.jpg)
เหล็กหล่อเหนียว (Ductile Cast Iron)
เหล็กหล่อเหนียว หรือเหล็กหล่อแกรไฟต์กลม (Ductile Cast Iron, Nodular Cast Iron, Spheroidal Graphite Cast Iron) เป็นเหล็กหล่อที่รวมเอาข้อดีของเหล็กหล่อเทา (Grey Cast Iron) และเหล็กเหนียว (Steel) เข้าด้วยกัน
ด้วยเตาไฟฟ้าอินดักชั่น ให้มีอุณหภูมิสูงกว่า 1500ºC และเติมแมกนีเซียมลงไป 0.35-0.75% แมกนีเซียมจะเปลี่ยนรูปร่างของกราไฟต์ให้เป็นก้อนกลม ทำให้ได้เหล็กหล่อเหนียว (Ductile Cast Iron) ที่มีคุณสมบัติความแข็งแรงเทียบเท่าเหล็กเหนียวและมีการทนต่อการกัดกร่อนของบรรยากาศดีเทียบเท่าเหล็กหล่อเทา
เหล็กหล่อเหนียวมีคุณสมบัติทางกลเทียบเท่าเหล็กเหนียว (จากตาราง 1) มีการรับความต้านแรงดึงสูงสุดมากกว่า 2 เท่าของเหล็กหล่อสีเทา มีค่าเทียบเท่าเหล็กข้ออ้อยและเหล็กหล่อเหนียว มีการยืดตัว Elongation)ซึ่งในเหล็กหล่อเทาไม่มี
ชนิดเหล็ก | ความต้านทานแรงดึงสูงสุด(Mpa) | ความยืดตัวต่ำสุด(%) | มาตรฐาน |
---|---|---|---|
เหล็กหล่อเหนียว SGI 500 | 500 | 7 | TIS 537-2527 |
Nodular Cast Iron Grade 500/7 | 500 | 7 | ISO 1083-1976 |
เหล็กข้ออ้อย SD-40 | 560 | 15 | TIS 24-2548 |
Steel Plate Grade C35 | 520 | 19 | ISO 683-18:1996 |
เหล็กหล่อสีเทา GCI 150 | 150 | 0 | TIS 536-2527 |
Gray Cast Iron Grade 150 | 150 | 0 | ISO/R 185-1961 |
![](http://www.knack.co.th/wp-content/uploads/2016/05/icon_heading_manhole_ductile2.png)
Quality Control Laboratory
(ทดสอบการควบคุมคุณภาพในห้องปฏิบัติของบริษัท)
![เครื่องตรวจสอบส่วนผสมทางเคมี<br />(Optical Emission Spectrometer)](http://www.knack.co.th/wp-content/uploads/2016/05/quality_lab1-1.png)
เครื่องตรวจสอบส่วนผสมทางเคมี
(Optical Emission Spectrometer)
![เครื่องมือวัดความแข็ง<br />(Hardness Tester)](http://www.knack.co.th/wp-content/uploads/2016/05/quality_lab1-3.png)
เครื่องมือวัดความแข็ง
(Hardness Tester)
![เครื่องทดสอบแรงดึง<br />(Tensile Testing Machine)](http://www.knack.co.th/wp-content/uploads/2016/05/quality_lab1-2.png)
เครื่องทดสอบแรงดึง
(Tensile Testing Machine)
![](http://www.knack.co.th/wp-content/uploads/2016/05/icon_heading_manhole_ductile3.png)
Capacity Load
BS EN124 | TEST LOAD (kN) |
---|---|
GROUP 1 | 15 |
GROUP 2 | 125 |
GROUP 3 | 250 |
GROUP 4 | 400 |
GROUP 5 | 600 |
GROUP 6 | 900 |

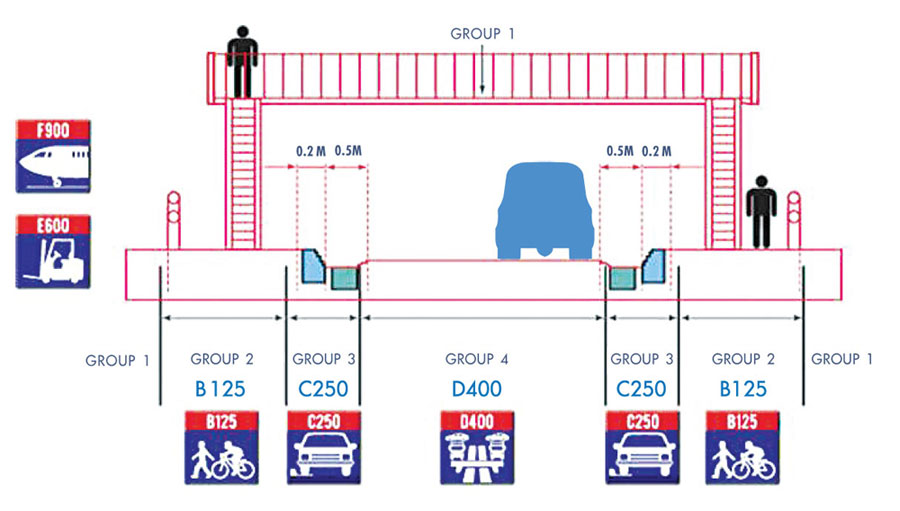

Areas which can only be used by pedestrians and pedal cyclists.
Group 2 (min. Class B125)Footways, pedestrian areas and comparable areas, car parks or car parking
Group 3 (min. Class C250)For Gully tops installed in the area of kerbside channels of roads (figure 1) which when measured from the kerb edge, extend a maximum of 0.5 m into the carriageway and a maximum of 0.2 m into the footway
Group 4 (min. Class D400)Carriageway roads (including pedestrian streets), hard shoulders (figure 1 and 2) and parking areas for all types of road vehicles.
Group 5 (min. Class E600)
Areas imposing high wheel loads eg. Docks and aircraft pavements.
Group 6 (min. Class F900)Area imposing particularly high wheel loads, eg aircraft pavements.
สำหรับพื้นที่ไม่มีรถผ่าน เช่น ทางเท้า ทางจักรยาน สะพานลอย สวนสาธารณะ
Group 2 รับน้ำหนัก 12.5 ตัน (ผลิตภัณฑ์ของบริษัท รุ่น Medium Duty)สำหรับพื้นที่ ที่จอดรถหรือถนนสำหรับรถเก๋ง รถปิคอัพ รถบรรทุกไม่เกิน 6 ล้อ
Group 3 รับน้ำหนัก 25 ตัน (ผลิตภัณฑ์ของบริษัท รุ่น Heavy Duty)สำหรับพื้นที่ ที่จอดรถหรือถนนสำหรับรถบรรทุกไม่เกิน 10 ล้อ
Group 4 รับน้ำหนัก 40 ตัน (ผลิตภัณฑ์ของบริษัท รุ่น Heavy Duty รับน้ำหนัก 40 ตัน)สำหรับพื้นที่ถนนหรือที่จอดรถสำหรับพาหนะทุกชนิด
Group 5 รับน้ำหนัก 60 ตันสำหรับพื้นที่รับน้ำหนักมาก เช่น สนามบินหรือท่าเรือ
Group 6 รับน้ำหนัก 90 ตันสำหรับพื้นที่รับน้ำหนักมากพิเศษ เช่น สนามบินหรือท่าเรือ
หมายเหตุ: ผลิตภัณฑ์ของบริษัทเทียบเคียงมาตรฐาน BS EN124 ให้เหมาะสม กับการใช้งานในประเทศไทย
